Hearing Aids Fitting Test Diagnostic Audiometer AD104 by Computer Print

2 Independent Channel, PC Based report print , Air and bone conduction
Hearing Aids Fitting Test Diagnostic Audiometer AD104 by Computer Print
Hearing Aids Fitting Test Diagnostic Audiometer AD104 by Computer Print
Hearing Aids Fitting Test Diagnostic Audiometer AD104 by Computer Print
Hearing Aids Fitting Test Diagnostic Audiometer AD104 by Computer Print

Description

Reviews

Hearing Aids Fitting Test Diagnostic Audiometer AD104 by  Computer Print
The AD104 is a new PC Based diagnostic Audiometer with software and 2 independent channel. The quality LCD on the display panel tells you the options you have selected. The Pure Tone has been derived using crystal controlled digital oscillator, meaning you can stop worrying about frequency shifts and recalibration.

Factory price quote date in 2019:
Sample price: 2200.0USD/set(MOQ=1 Set), Discount price: 1998.0USD/set(MOQ=10 Sets)

Features:
· 2 Independent channel
·Test Frequency: AC: 250-8000Hz BC: 250-6000Hz
· Pure tone test, pulse voice, narrow band noise and warble tone
· Designed for those able to respond to hearing a sound with raising hand or by pushing the patient response button
· Portable, light weight
· Easy-to-use tone switch
· Steady and pulsed tone
· Tone present indicator
· Battery life indicator
· Meets or exceeds methods for pure-tone threshold audiometry
· Original made in China
Sound pressure range:
Frequency
AC dB HL
AC dB HL
BC dB HL
Hz
TDH39
Ear-Tone 5A
B71
250
100
105
45
500
120
110
60
750
120
115
60
1000
120
120
70
1500
120
120
70
2000
120
120
70
3000
120
120
70
4000
120
115
60
6000
120
100
50
8000
110
95
50

The Pure Tone Model AD104 Audiometer is user friendly, ideally suited for all practices including pediatrics, family care, general medicine, internal medicine and schools.

 Product details:
Professional Clinical Diagnostic Audiometer Hearing Test Machine for fitting hearing aids
Extended range function:
If it is not selected, AC output restrictions smaller than maximum output 20 dB
Input :
 pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.
Masking :
Both air conduction and bone conduction can do masking
Computer Interface:
USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.
Output :
Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.
Transducer :
TDH 39 Air conduction earphone (standard configuration)
Ear~Tone 5A Insert earphone (Optional)
B71 bone conduction earphone (standard configuration)
Monitor function:
 Optional
Feedback words :
Built-in feedback words microphone. 50-90 dB SPL can be continuous adjust in panel.
Send test voice:
Manual or automatic/ Monopulse/ Multiple-pulse
Frequency selection :.
If you need to fast test, you can select 250 Hz,750 Hz,1500Hz, 4k Hz or 6k Hz
Display :
LCD Letter-figure
Patient signal:
Responser
Structure :
Engineering plastic shell
Attenuator control :
Standard rotary switch (can choose Push-button switch)
Power supply:
Outer type regulated power supply (standard configuration), 220-230V,50-60 Hz
Fuse :
T2A Built-in fuse
Size :
45cm*30cm*11cm
Weight :
N.w. 1.8KG, G.W. 5 KG

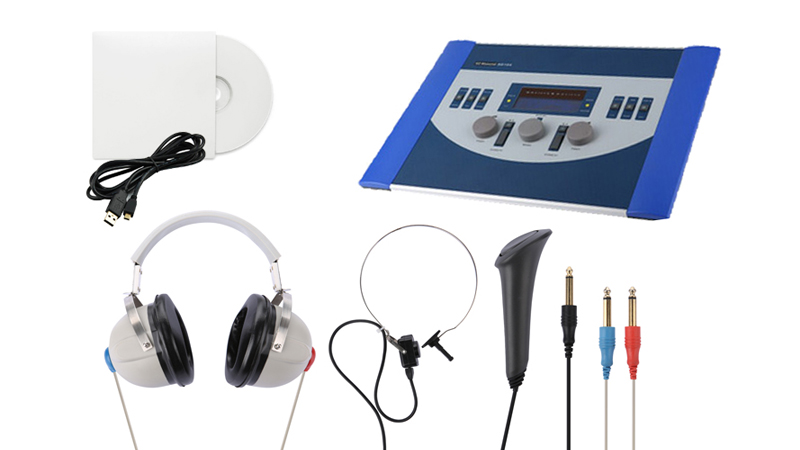

Standard accessory:
TDH39 Air conduction earphone,
B71 Bone conduction earphone,
Responser,
power cable,
USB cable,
CD software,
Audiogram.

Packaging and details:
Contact us Anytime:
Whatsapp/Wechat:(86) 18565 77 5544 | Skype: roger.cctv
