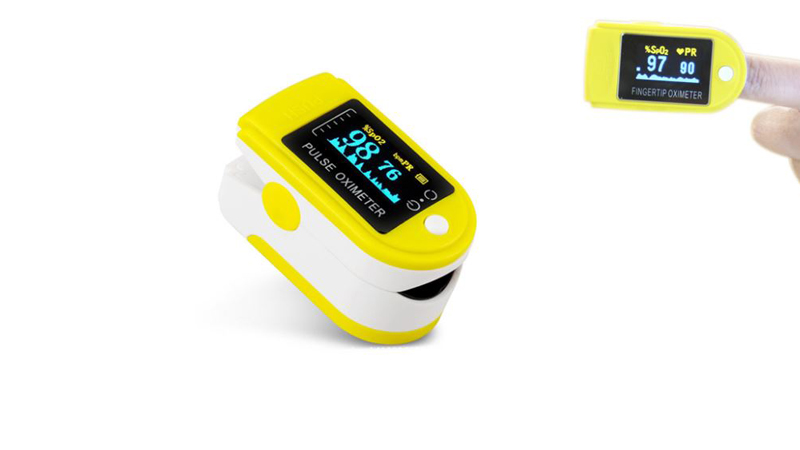

Blood Oxygen And Pulse Rate Fingertip Pulse Oximeter

Portable Pulse Oximeter, SPO2 Monitor, OLED Display

Description

Portable Blood Oxygen And Pulse Rate Fingertip Pulse Oximeter for the Blood Oxygen Spo2 Monitor and heart Rate

Features:

1.Automatic 4-directions screen rotation

2.Light weight,easy operation,

3.OLED color screen, SpO2 wave form

4.Perfusion is lower than≤0.2%

5.Automatically power off after 8s idling

6.Accuracy :SpO2(70%-99%)+-2%

PR(30BPM-250BPM):+-1

7.Beep sound and setting function

8.Color:White,Blue,Yellow

Product Details:

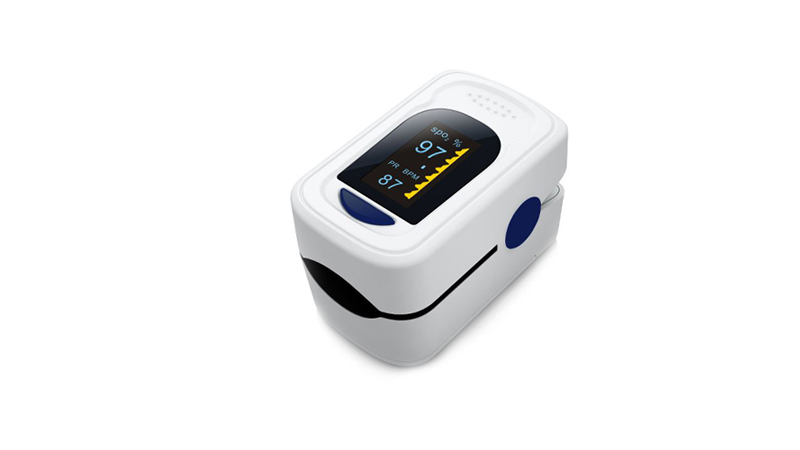

Fingertip Pulse Oximeter
Specification
Display Type	Color OLED display	Model: 30X
SpO2 Measurement	Measurement range	30bpm ~ 250bpm
	Resolution	1bpm
	Accuracy	The greater of ±1% and 1bpm
Parameters	Working current	20mA ~ 130mA
	Safety type	Internal power supply, Type BF applied part
	Direction sensor	Four-way display（optional）
	Light sensor	Red light （wavelength 662nm ~ 666nm 7mW）
	Light sensor	Infrared light （wave length 890nm ~ 900nm 5.5mW）
Normal Working Condition
	Data update cycle	Not more than 12 hours
	Temperature	（5~40）℃
	Humidity	≤80%
	Atmospheric pressure	（86~106）kPa
	Battery	d.c. 3.0V (2 × AAA batteries)
	Anti-ambient light interference ability	The deviation between the SpO2 measured in the room with day lighting or illumination source and that measured in the darkroom is less than ±1%.
	Low perfusion error	SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.2%.
